Phison’s Most Advanced
High Speed PCIe 5.0
Redriver IC
Solving motherboard signal loss problems
by PCIe 5.0 high-speed interface
Strategic Supplier for High-Speed Connectivity Solutions:
Extends signal reach
Ultra-low latency
Unique proprietary “PHiTUNE” auto-
equalization tool
Front Panel I/O Expansion (Short Reach Edge Connectivity)
Extend PCIe signals directly from the CPU root complex to front-panel connectors, supporting dense storage form factors like EDSFF and U.2.
Why Phison Redrivers Fit:
Optimized for Moderate Loss:
The ideal solution for environments where channel loss is moderate and long cables are unnecessary.
Cost-Effective Design:
Eliminates the need for full signal retiming, providing a streamlined solution for cost-sensitive architectures.
Power Efficiency:
Consumes significantly less power compared to a retimer, which is a critical advantage for maintaining thermal efficiency in dense storage nodes.
Beyond Cascaded Retimer Reach
Seamlessly extend PCIe connectivity across entire racks or even rows within high-performance AI clusters.
Why Phison Redrivers Fit:
Overcoming Protocol Limits:
Avoids the protocol management constraints, latency penalties, and timing limits commonly encountered when cascading multiple retimers.
Extended Reach:
Enables PCIe connectivity far beyond traditional electrical limitations, overcoming the inherent signal integrity and latency bottlenecks of cascaded retimer setups.
Automatic redriver calibration with optimal equalization within 30 minutes
High linearity, noise immunity, enhanced gain and bandwidth
Phison’s Signal Conditioning Solutions
PCIe 5.0 2-lane mux/demux redriver
Dual-lane for value-add features in Gen5 platforms

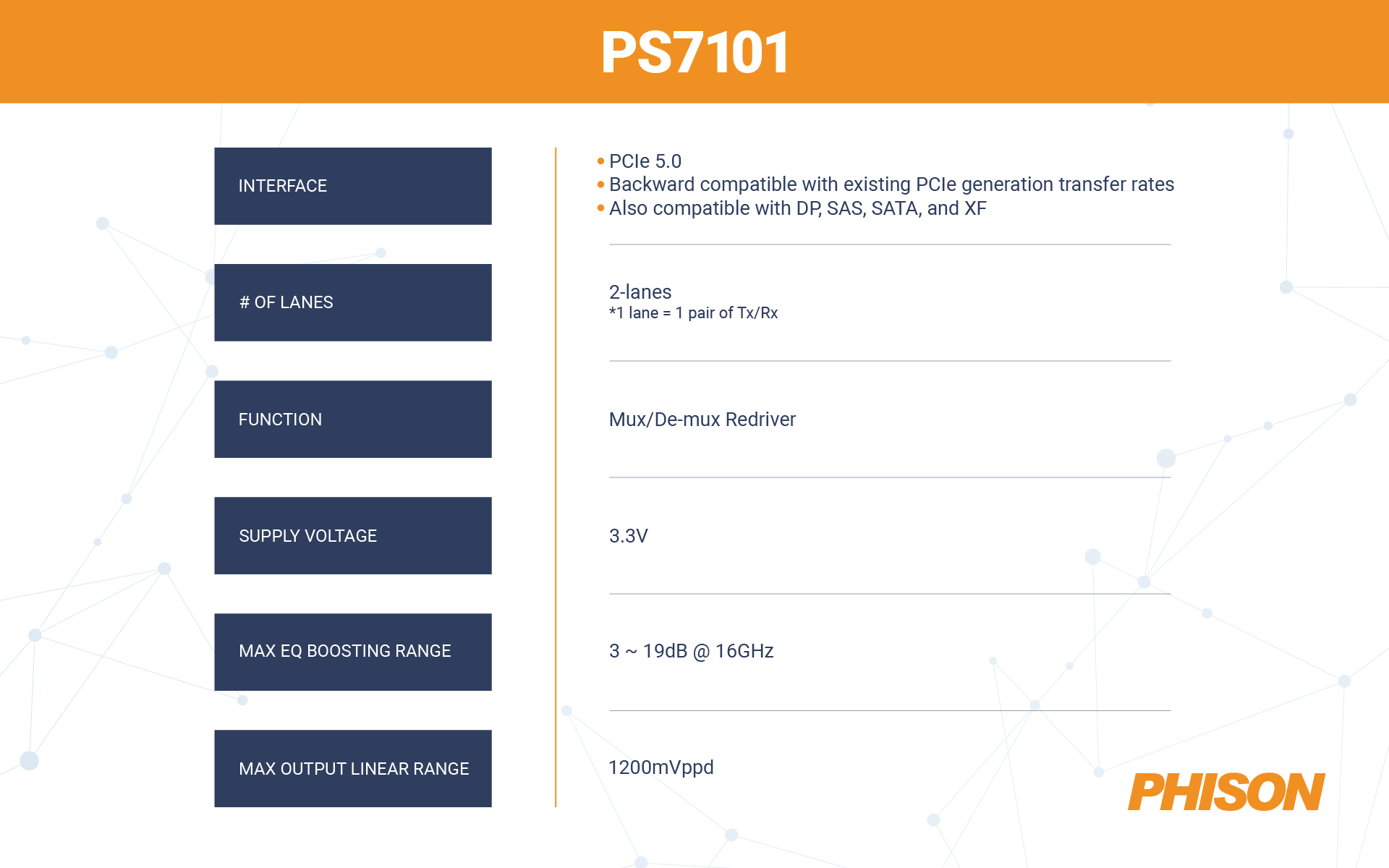

The Phison PS7101 is an 2-lane high performance linear Redriver IC with integrated multiplexer & demultiplexer (mux/de-mux) designed for PCIe 5.0 applications that supports up to 32 Gbps data rate. The Redriver provides programmable equalization, output swing, and flat gain to optimize performance over a variety of physical mediums, such as PCB traces, and transmission cables. The PS7101 featuring high frequency boosting, low channel-channel cross-talk, low additive jitter and low return loss makes the device almost a passive element in the link.
PCIe 5.0 8-channel linear redriver
Maximizing the performance of hardware-assisted applications

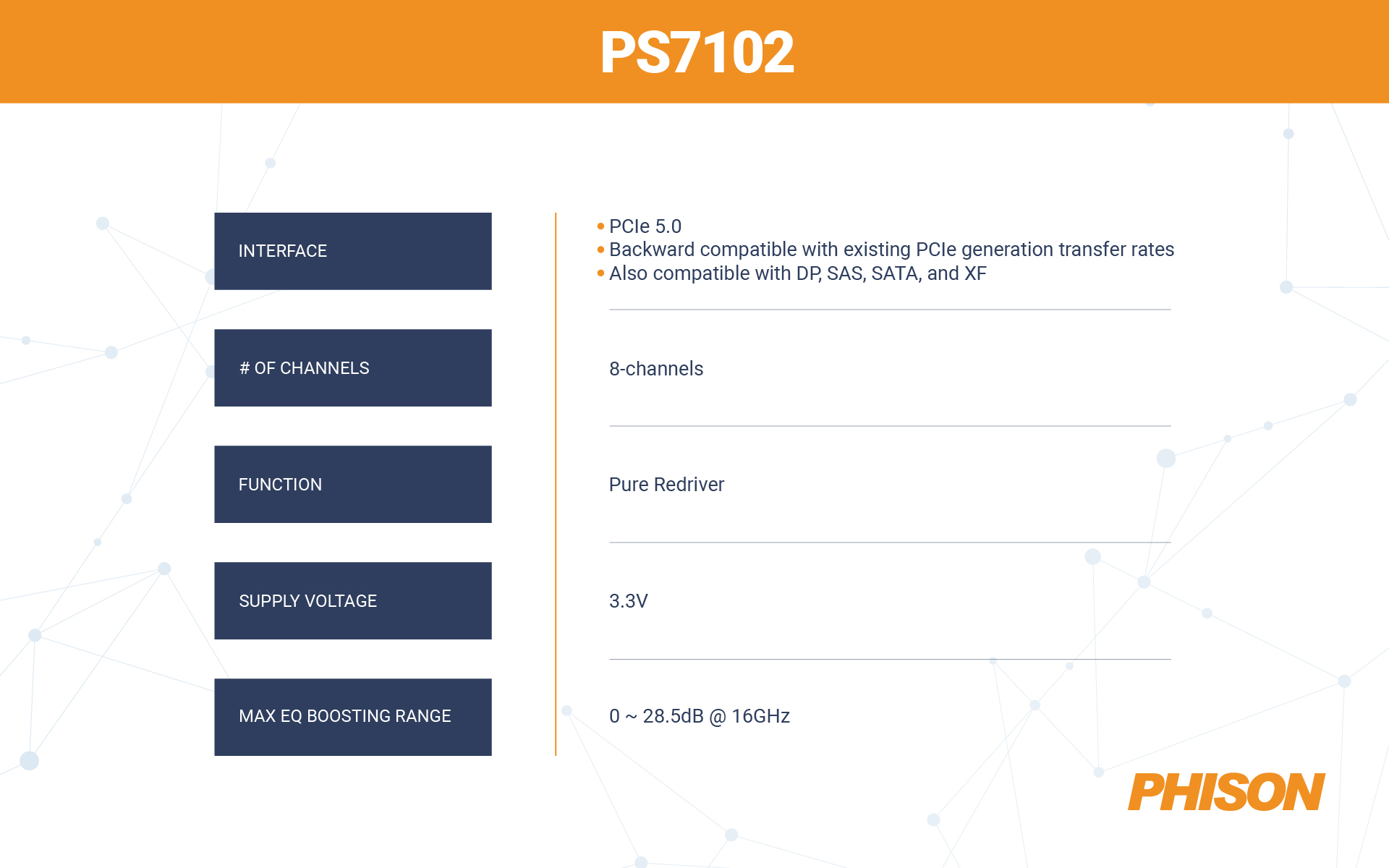

The Phison PS7102 is an 8-channel high performance linear Redriver IC designed for PCIe 5.0 applications that supports up to 32 Gbps data rate. The Redriver provides programmable equalization, output swing, and flat gain to optimize performance over a variety of physical mediums, such as PCB traces, and transmission cables. The PS7102 featuring high frequency boosting, low channel-channel cross-talk, low additive jitter and low return loss makes the device almost a passive element in the link.
PCIe 5.0 8-channel linear redriver
Enabling full-length PCIe Gen5 performance at the edge
The Phison PS7102 is an 8-channel high performance linear Redriver IC designed for PCIe 5.0 applications that supports up to 32 Gbps data rate. The Redriver provides programmable equalization, output swing, and flat gain to optimize performance over a variety of physical mediums, such as PCB traces, and transmission cables. The PS7102 featuring high frequency boosting, low channel-channel cross-talk, low additive jitter and low return loss makes the device almost a passive element in the link.
