• PS8318 / PS8317 eUFS

    Embracing the Power of 5G Mobile Experience

Performance for Every Application.

Taking care of your data, your moments, and your memories with state-of-the-art performance and reliability.

1

2

3

4

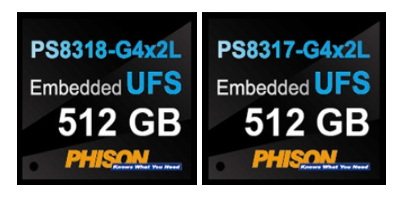

Embedded UFS

Technical Specifications

Controller

PS8318

UFS 3.0/3.1

2-ch @ 1600 MT/s

4-ch @ 800 MT/s

Host Interface

M-PHY 4.1, HS-Gear 4B x 2-Lanes

Capacity

up to 512GB (3D TLC NAND Flash)

Sequential Read/Write (up to)

2000 / 610 MB/s

Random Read/Write (up to)

120K / 130K IOPS

ECC

Phison 4th Gen LDPC

Advanced Features

  • Co-Processor Architecture from PCIe SSDs
  • LDPC and RAID ECC to Support Latest 3D TLC NAND Flash



Controller

PS8317

UFS 3.0/3.1

2-ch @ 1,200 MT/s

Host Interface

M-PHY 4.1, HS-Gear 4B x 2-Lanes

Capacity

up to 512GB (3D TLC NAND Flash)

Sequential Read/Write (up to)

1,650 / 800 MB/s

Random Read/Write (up to)

82K / 143K IOPS

ECC

Phison 4th Gen. LDPC

Advanced Features

  • Co-Processor Architecture from PCIe SSDs
  • LDPC and RAID ECC to Support Latest 3D TLC NAND Flash
